Description
Model : Gigabyte B450M DS3H
Chipset : AMD B450
Form Factor : Micro ATX

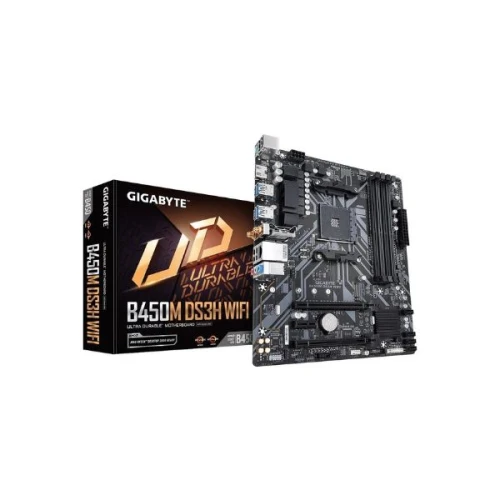

Motherboard Gigabyte B450M DS3H AMD DDR4
Compatibility
Sockets Supported : AM4
Supported CPU : 1st/2nd Generation AMD Ryzen processors with Radeon Vega Graphics
Supported Operating System : Windows 7 / 10
Motherboard Gigabyte B450M DS3H AMD DDR4
Memory Support
Memory Type : DDR4
Memory MHz : 3200(O.C.)/ 2933/ 2667/ 2400/ 2133MHz
Memory Channel : Dual
Memory Slot : 4
Memory Max. : 64GB
Optane Memory Support : No
Graphics
Graphics : Integrated Graphics
Multi-GPU Support : AMD Quad-GPU CrossFire and 2-Way AMD CrossFire
PCI Express Slot : 1 x PCI Express x16 slot, (running at x16, x4), 1 x PCI Express x1 slot
CrossFire Support : Yes
Sli Support : No
Storage
Storage Interface : 6.0Gb/s
M.2/SSD Expansion Slot : 1
SATA Port : 4 x SATA
Raid Support : 0, 1, 10
Network & Connectivity
LAN Chipset : Realtek GbE LAN
LAN Speed(Mbps) : 10/100/1000Mbps
Ports
USB Port : 2 x USB 3.1 Gen 1, 8 x USB 2.0
DVI Port : 1
HDMI Port : 1
Audio
Audio : Chipset.Realtek ALC887
Audio : Channel2/4/5.1/7.1
Bios Information
BIOS Type : 1 x 128 Mbit flash
BIOS Model : AMI UEFI BIOS
BIOS Version : PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Country Of Origin : Taiwan
Made in/ Assemble : China
Warranty : 3 year
