Description

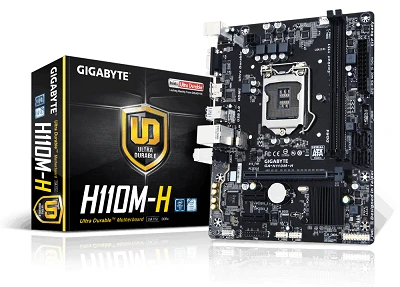

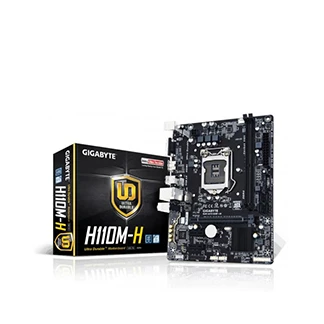

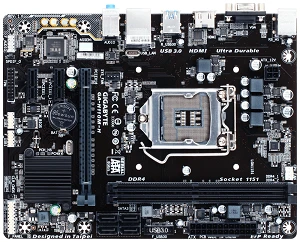

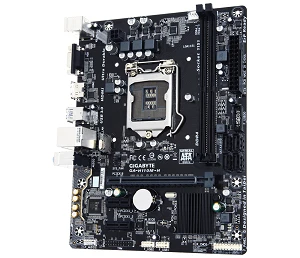

Motherboard Gigabyte H110m-H DDR4

Basic Information
-Supported CPU :  Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 -processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package, MOTHERBOARD GIGABYTE H110M-H DDR4
-For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
-L3 cache varies with CPU
Chipset :  Intel® H110 Express Chipset
BIOS       :  1 x 64 Mbit flash
-Use of licensed AMI UEFI BIOS
-PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor :  Micro ATX Form Factor; 22.6cm x 17.4cm

Expansion Slots

PCI :  1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conform to PCI Express 3.0 standard.)
-2 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
MOTHERBOARD GIGABYTE H110M-H DDR4

Memory

Type :  Dual channel DDR4 memory architecture
Slots :  2 x DIMM
Supported Memory :  Support for DDR4 2400/2133 MHz memory modules
-Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
-Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Maximum Mamory :  32 GB
Graphics
Graphics :  1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
-1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz
-Support for HDMI 1.4 version.
Max Shared Memory :  1024 MB

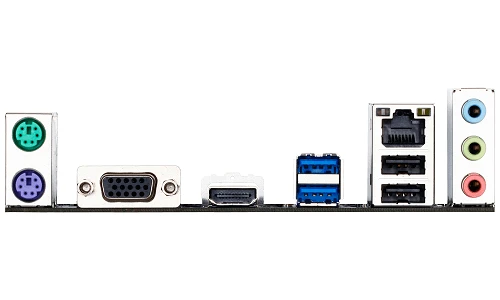

Connector & Ports
HDMI     :  1 x HDMI
USB (s)  Chipset:
-4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
-6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) :  Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage Chipset:
-4 x SATA 6Gb/s connectors
Audio
-Realtek® ALC887 codec
-High Definition Audio
-2/4/5.1/7.1-channel
-To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
-Support for S/PDIF Out
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper
D-Sub (s) 1 x D-Sub

Manufacturing Warranty 03 Years
