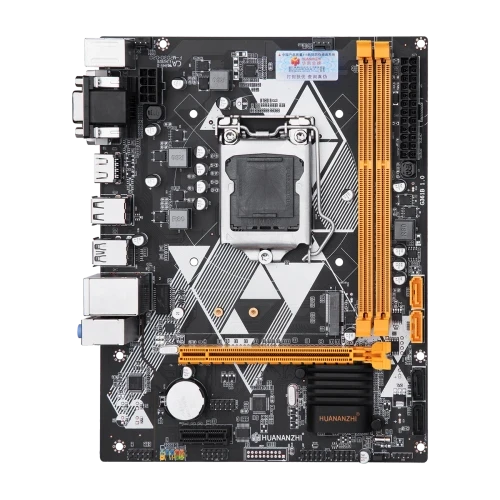

HUANANZHI H81 Intel H81 DDR3 Motherboard

The HUANANZHI H81 Motherboard is an affordable motherboard designed for building or upgrading desktop computers with compatible 4th Generation Intel processors. Featuring the Intel H81 chipset and an LGA1150 CPU socket, it supports selected Intel Core i3, Core i5, Core i7, Pentium, and Celeron processors that use this socket.

With support for up to 16GB DDR3 RAM, dual-channel memory, PCI Express expansion, and an M.2 NVMe SSD interface, the HUANANZHI H81 is suitable for everyday computing, office applications, online learning, web browsing, and budget desktop PC builds. It also provides VGA, HDMI, and DVI display outputs for compatible processors with integrated graphics.

⭐ Key Features at a Glance

• Intel H81 chipset

• Supports compatible Intel LGA1150 processors

• Compatible with selected 4th Gen Intel Core i3, i5, and i7 CPUs

• Supports selected Intel Pentium and Celeron processors

• 2 × DDR3 memory slots

• Supports up to 16GB DDR3 RAM

• Dual-channel memory architecture

• DDR3 1066/1333/1600MHz support

• M.2 2280 PCIe 2.0 x4 NVMe interface

• 2 × SATA 6Gb/s ports and 2 × SATA 3Gb/s ports

• PCIe x16 and PCIe x1 expansion slots

• VGA, HDMI, and DVI display outputs

• USB 3.0 and USB 2.0 connectivity

• Built-in audio and Ethernet LAN

• Micro-ATX form factor

🖥️ Compatible with Intel LGA1150 Processors

The HUANANZHI H81 motherboard uses the Intel H81 chipset and an LGA1150 CPU socket. It supports compatible 4th Generation Intel Core processors, along with selected Pentium and Celeron CPUs.

This makes it a suitable option for users assembling a budget desktop PC for office work, browsing, educational tasks, and general computing. Before purchasing, verify the exact processor model and compatibility with the motherboard's supported CPU list.

💾 DDR3 Dual-Channel Memory Support

The motherboard features two DDR3 DIMM slots and supports up to 16GB of RAM. Supported memory speeds include DDR3 1066MHz, 1333MHz, and 1600MHz, depending on the processor and installed memory modules.

Dual-channel memory architecture can improve memory bandwidth when compatible RAM modules are installed correctly. The 16GB maximum capacity is suitable for many basic desktop applications, multitasking, office software, and web browsing.

⚡ M.2 NVMe and SATA Storage Options

The HUANANZHI H81 includes an M.2 2280 PCIe 2.0 x4 NVMe interface, allowing users to install a compatible M.2 NVMe SSD. It also provides four SATA storage connections: two SATA 6Gb/s ports and two SATA 3Gb/s ports, according to the manufacturer's specifications.

This combination allows users to configure storage with compatible SSDs and hard drives. Please note that the M.2 interface is intended for compatible NVMe drives; check the exact motherboard revision before purchasing an M.2 SATA SSD.

🎮 PCIe Expansion for Graphics Cards

The motherboard provides a PCIe x16 expansion slot for a compatible dedicated graphics card and a PCIe x1 slot for supported expansion devices. This gives users flexibility when configuring a desktop PC for everyday graphics, multiple display needs, or compatible graphics-intensive applications.

Graphics card compatibility also depends on the card's physical size, power requirements, and the PC case and power supply being used.

🖥️ VGA, HDMI, and DVI Display Outputs

The HUANANZHI H81 includes VGA, HDMI, and DVI display connections. These interfaces provide flexibility for connecting compatible monitors.

Display output from the motherboard generally requires a processor with integrated graphics. If the installed CPU does not include integrated graphics, a compatible dedicated graphics card may be required.

🔌 Connectivity and Everyday Convenience

The motherboard provides USB 2.0 and USB 3.0 ports for compatible peripherals, including keyboards, mice, printers, and external storage devices. It also includes a PS/2 connection, an RJ45 Ethernet port, and onboard audio connections.

These features make the HUANANZHI H81 practical for common desktop setups used in homes, offices, educational environments, and small businesses.

💼 Ideal for Budget Desktop PC Builds

The HUANANZHI H81 motherboard is suitable for:

• Home and office desktop computers

• Online classes and educational applications

• Web browsing and everyday computing

• Office software and document editing

• Budget PC upgrades using compatible hardware

• Desktop systems with compatible Intel 4th Gen processors

• SSD and HDD storage configurations

• Compatible dedicated graphics card installations

📋 Technical Specifications

• Brand: HUANANZHI

• Model: H81

• Chipset: Intel H81

• CPU Socket: Intel LGA1150

• Supported Processors: Compatible 4th Gen Intel Core i3/i5/i7, Pentium, and Celeron CPUs

• Memory Type: DDR3

• Memory Slots: 2 × DDR3 DIMM

• Maximum Memory: 16GB

• Memory Speed: 1066/1333/1600MHz

• Memory Architecture: Dual Channel

• Storage Interface: 2 × SATA 6Gb/s and 2 × SATA 3Gb/s

• M.2 Interface: M.2 2280 PCIe 2.0 x4 NVMe

• Expansion Slots: 1 × PCIe x16, 1 × PCIe x1

• Display Outputs: VGA, HDMI, DVI

• USB Ports: 2 × USB 3.0 and 4 × USB 2.0 rear ports

• Networking: RJ45 Ethernet, 100Mbps LAN

• Audio: Onboard audio

• Power Connectors: 24-pin motherboard power and 8-pin CPU power

• Fan Headers: 1 × CPU fan, 1 × system fan

• Form Factor: Micro-ATX

• Dimensions: Approximately 210 × 168mm

• Supported Operating Systems: Windows 7, Windows 10, Windows 11, according to manufacturer information
